Restoring your system from a backup can feel like a safety net when things go wrong. But that moment of relief can turn into frustration when you see the dreaded message: “Windows cannot find a system image on this computer.” Before you panic and assume your valuable data is lost forever, take a deep breath. This issue, while concerning, is often solvable with a few methodical steps.
This guide will walk you through the most effective ways to fix the problem and ensure your system image is recognized and ready to be restored.
What Is a System Image and Why Can’t Windows Find It?
A system image is a complete backup of your Windows installation, including your system settings, programs, and user data. It’s incredibly useful for restoring your computer to a prior state in case of system failure or malware attack.
However, Windows might not find the system image for a few common reasons:
- The backup is stored on a different drive or partition.
- The system image file or folder structure is altered.
- The backup is on a disconnected or incompatible external drive.
- You’re using a different version of Windows to perform the restore.
Luckily, every one of these issues has a practical solution.
Step-by-Step Fixes
1. Check the Connection and Compatibility of the Backup Drive
Start with the basics. Make sure that the external hard drive or backup device containing your system image is properly connected to your computer. Use a different USB port or cable to rule out physical connection issues.
Also, ensure the drive is formatted in a way that’s compatible with Windows (preferably NTFS) and is powered on.

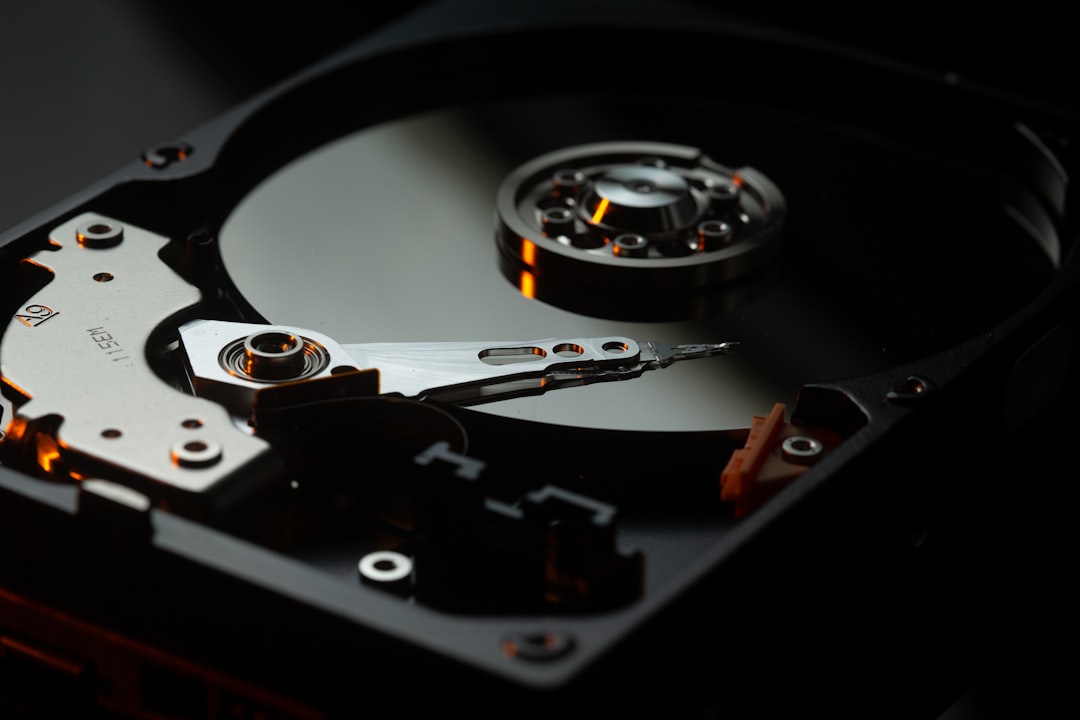

external hard drive, system restore, windows backup
2. Ensure the Folder Structure Is Correct
Windows expects system images to follow a very specific folder structure. If your system image was moved or copied incorrectly, Windows won’t be able to detect it.
Open your backup drive and ensure the following path exists:
- DriveLetter:\WindowsImageBackup\
- This folder must contain a sub-folder named exactly after your computer’s name.
For example: D:\WindowsImageBackup\MY-PC
If any part of this structure is missing or renamed, rename it back to match appropriately.
3. Verify Your Computer’s Name Matches the Folder Name
Your backup folder must match your computer’s original name at the time the backup was made. To check your current computer name:
- Open the Control Panel.
- Click on System and Security > System.
- Under “Computer name”, locate the name that should match your system image folder.
If it’s different, consider renaming the folder in your backup drive to match the computer name exactly.
4. Boot From Recovery Media
If you’re trying to restore from inside Windows and having no luck, try booting from a recovery DVD or USB stick. Often, this environment is better at recognizing the presence of system images, especially on external drives.
To do this:
- Insert your Windows Recovery USB or System Repair Disc.
- Boot your PC from that media.
- Select Repair your computer > Troubleshoot > System Image Recovery.
windows recovery, system image restore, repair options
5. Rename or Move Conflicting Backups
If multiple system image folders exist on the same drive, Windows might get confused. Temporarily move or rename all except the one you want to restore from. This eliminates conflict and simplifies the selection process.
Advanced Tip: Use Command Prompt
If all else fails, use the Command Prompt in recovery mode to verify visibility. Launch CMD from the recovery tools and use:
wbadmin get versions -backupTarget:D: -machine:MY-PCThis command helps to list available versions of the system image. Replace D: with your actual backup drive letter and MY-PC with your computer’s name.
Final Thoughts
While encountering the “Windows cannot find a system image” error is frustrating, it doesn’t mean all is lost. Going through the troubleshooting steps outlined above can often resolve the issue and bring you one step closer to a working computer.
Always double-check folder naming conventions, backup device compatibility, and try using the recovery environment when Windows itself fails. With patience and precision, you can recover your system image and get back to work.
